Basic Senses
Properties
- Use Unity Messages (Advanced): Whether the AI is initialized and updated by Unity or done manually.
- Use Fixed Update (Advanced): Whether the AI responds to Unity Update or FixedUpdate messages. Only valid if Use Unity Messages is checked.
- Is Active (Advanced): Whether the AI is currently updating.
- Body: The GameObject that the AI will move and animate.
- Senses: The type of senses used. Currently RAIN supports only one senses type, Basic Senses (this one). If you create your own Custom Senses you can select it here.
- Add Sensor: Allows you to add a sensor to this AI. Currently RAIN supports an Audio Sensor and a Visual Sensor. If you create your own Custom Sensor you can select it here.
Actions
- Select All: Selects all of the sensors that are on this AI.
- Remove Selected: Removes the selected sensors on this AI.
Usage
Basic Senses is used to detect Audio Aspects and Visual Aspects in your Unity scene. This is done by adding Visual and Audio Sensors to your AI and using them through the Detect node.
Once you have added a sensor, you can select it by left clicking on its title bar. You can select multiple sensors by holding the Ctrl key down.

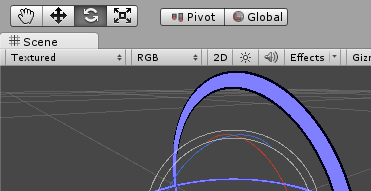

You can also move, rotate, and scale any selected sensors by using the transform tools.
Code
See Also
